CVE-2023-20869/20870: EXPLOITING VMWARE WORKSTATION AT PWN2OWN VANCOUVER

In VMware Workstation, in the USB Controller setting, there is the “Share Bluetooth devices with the virtual machine” option. This is enabled by default. It allows guest OSes to use Bluetooth devices. This functionality is handled by the Vbluetooth component, which is implemented in the vmware-vmx.exe binary. The VBluetooth device information can be read by lsusb command (in Linux) as follows:

Each time a guest OS sends a USB Request Block (URB) request to the VBluetooth device, the function VUsbBluetooth_OpNewUrb() is invoked to allocate memory to read or write data. The following code snippet is the sub_140740EB0 function in vmware-vmx.exe:

This function returns a VUsbURB object. Data is stored in this object in the urb_data buffer. This buffer is allocated by the RBuf_New() function and assigned to urb_data at [1]. Note that the RBuf_New() function calls the malloc function to allocate memory, so the memory is uninitialized. Then, the URB data is handled by VUsbBluetooth_OpSubmitUrb() function. This code snippet is from the sub_140740F50 function in vmware-vmx.exe:

total_urb_len is the length of data the guest OS wants to read from or write to the URB. This value is controllable by the attacker. At [2], total_urb_len is assigned to urb->urb_actualsize without a check. Then, based on the endpoint type and URB packet, the corresponding function is invoked. Afterwards, urb->urb_actualsize is set again in the handler function, but only if the packet is valid. We can see in the VUsbBluetooth_OpSubmitUrb() function that if the urb_data->bRequest is an invalid opcode (checked at [3]), urb->urb_actualsize will not be set, and it will remain set to an attacker-controllable value.

Finally, the UHCI_UrbResponse() function is invoked to send data back to the guest. The following snippet is in the sub_1401F7C50 function in vmware-vmx.exe, corresponding to assembly code from address 0x1401F7CBF:

A maximum of urb->urb_actualsize bytes of data from the urb->urb_data buffer will be returned to the guest. Since an attacker could control the value of urb->urb_actualsize and the urb->urb_data buffer is uninitialized, the guest OS could read uninitialized data from the heap.

CVE-2023-20869 – The Stack-based Overflow

The VBluetooth device also implements an Service Discovery Protocol (SDP) feature. When a guest OS wants to send an SDP packet to a specific Bluetooth peer, it must initialize a L2CAP connection to this peer. This is done by sending an L2CAP_CMD_CONN_REQ packet to the L2CAP_SIGNALLING_CID channel with the Protocol/Service Multiplexer (PSM) field set to 0x1. The result is a newly created SDP socket. This socket is used when processing subsequent SDP operations.

The SDP protocol data unit (PDU) format is well explained here. When the host OS processes an SDP PDU from the guest, it invokes SDPData_ReadElement() to parse the PDU. Here’s a look at the SDPData_ReadElement() function from the sub_14083C1D0 function in vmware-vmx.exe:

The switch-case [1] is used to parse the data element size descriptor to determine the size of the raw data. Then this size is passed to SDPData_ReadRawInt() to parse the unsigned int at [2].

Here’s another code snippet. This one is from the sub_14083C570 function in vmware-vmx.exe. Since the PDU is submitted by the guest OS, an attacker can control the size argument, which leads to a possible stack buffer overflow at [3]/[4].

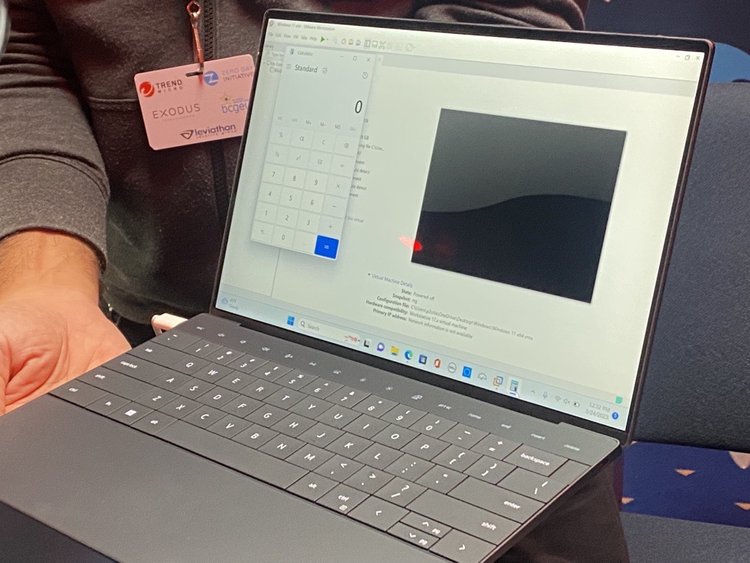

These bugs were combined at Pwn2Own Vancouver to pop calc on the target system. The exploit itself started in the guest OS while the calculator spawned on the host OS.
